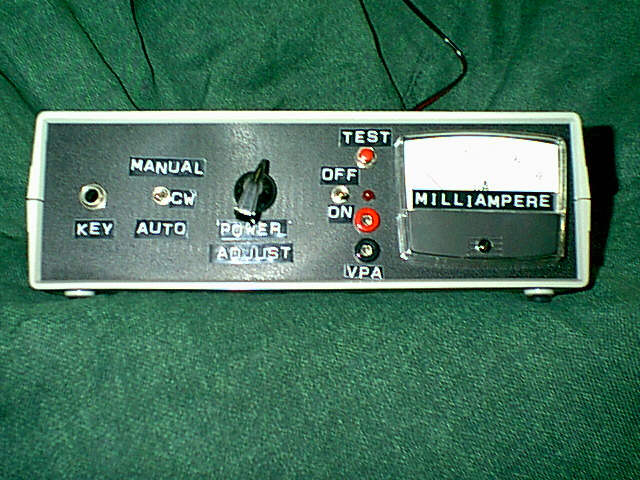

This a picture of the front of the Beacon Transmitter.The meter is used to adjust the power amplifier current so as not to exceed the 1 watt limit.

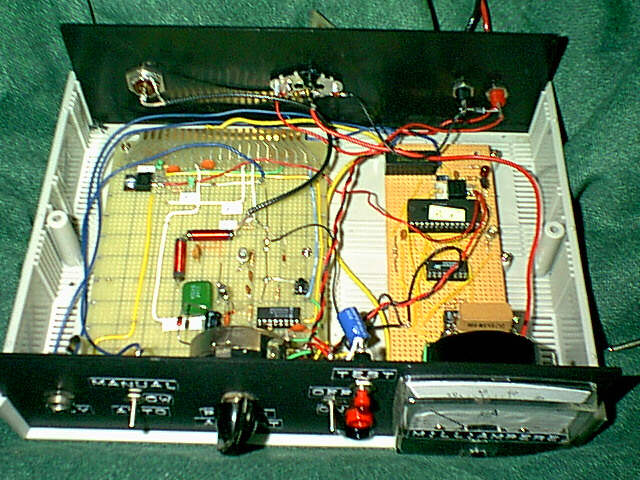

This is an inside the case view. The Transmitter board is on the left and the morse code keying board is on the right.

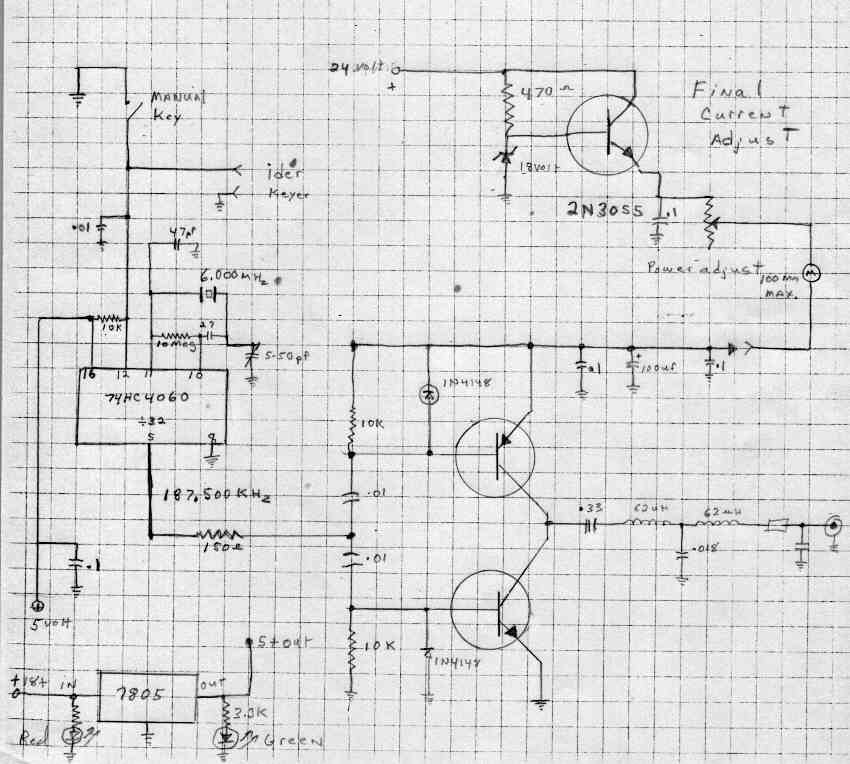

This is the schematic of the Transmitter section.Also including the output power control and 5 volt voltage regulator.

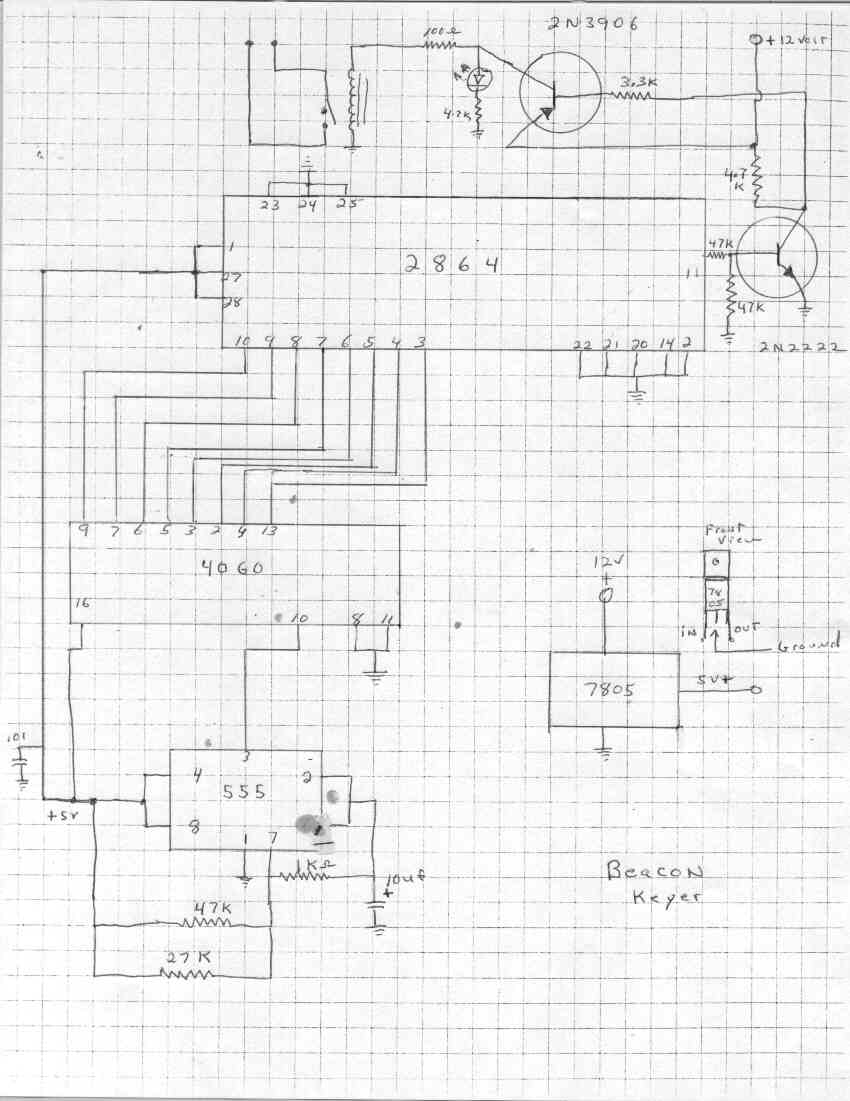

This is the schematic of the Morse Code id circuit. The 2864 EPROM is programmed to give the desired message.
